Piezo Ultrasonic Component
Piezo ultrasonic transducers and sensors are devices that generate or sense ultrasound energy. Piezo ultrasonic components can be divided into three categories: transmitters, receivers and transceivers. Transmitters convert electrical signals into ultrasound, receivers convert ultrasound into electrical signals, and transceivers can both transmit and receive ultrasound.
The application of piezo ultrasonic components can be for measuring wind speed and direction, fluid level, and speed in air or water. Further applications of piezo ultrasonic components include humidifiers, sonar, medical ultrasonography, burglar alarms, non-destructive testing and wireless charging.
Kailitech featured piezo ultrasonic products include ceramic discs, rings, half-moon, plates and stacks, for the main applications of ultrasonic welding, cleaning atomization transducers, ultrasonic fetal doppler, ultrasonic flow meter, ultrasonic pressure sensors, piezo transducers for vibration, mater dispersion and energy harvesting and etc. with features of low heat, high efficiency, high temperature resistance and high reliability, nonmagnetic and nonradiative, and custom dimensions available.
113khz Fogger Piezo Atomizing Transducer with Wire
Model:KD-20SR-113EW70 Brand:KD Dimension:20mm*0.7mm Resonant Frequency:113.0±5.0kHz
Peak voltage : VPP:2000V Dielectric Loss : tanδ ≤2.5% Static Capacitance : C0=15nF±20% @ 1kHz
Peak voltage : VPP:2000V Dielectric Loss : tanδ ≤2.5% Static Capacitance : C0=15nF±20% @ 1kHz
Physiotherapy Transducer Probe
Model: KDT40S-1M-01 Brand:KD Dimension:1φ40×32mm Resonance Frequency: Ft=1±0.1MHz
Physiotherapy Transducer Probe
Driving voltage : DC12～24V Dielectric Loss : tanδ≤0.5% Static Capacitance : C0=3500PF±15% at1KHz
Ultrasonic Beauty Head16mm 5MHz Piezo Ceramic Transducer
Model:KDU-PC16-0.41-1 Brand:KD Dimension:Φ16 x 0.41 Resonant Frequency:5 ± 7% MHz
35mm Piezo Round Bimorph Actuator for Pumps
Model:KDU-35B-0.53-1 Brand:KD Dimension:Φ35 x 0.53mm Resonant Frequency:50 ～ 60 Hz
41mm Piezo Round Bimorph Actuator for Pumps
Model:KDU-41B-0.6-1 Brand:KD Dimension:Φ41 x 0.60 (mm) Resonant Frequency:50 ～ 60 Hz

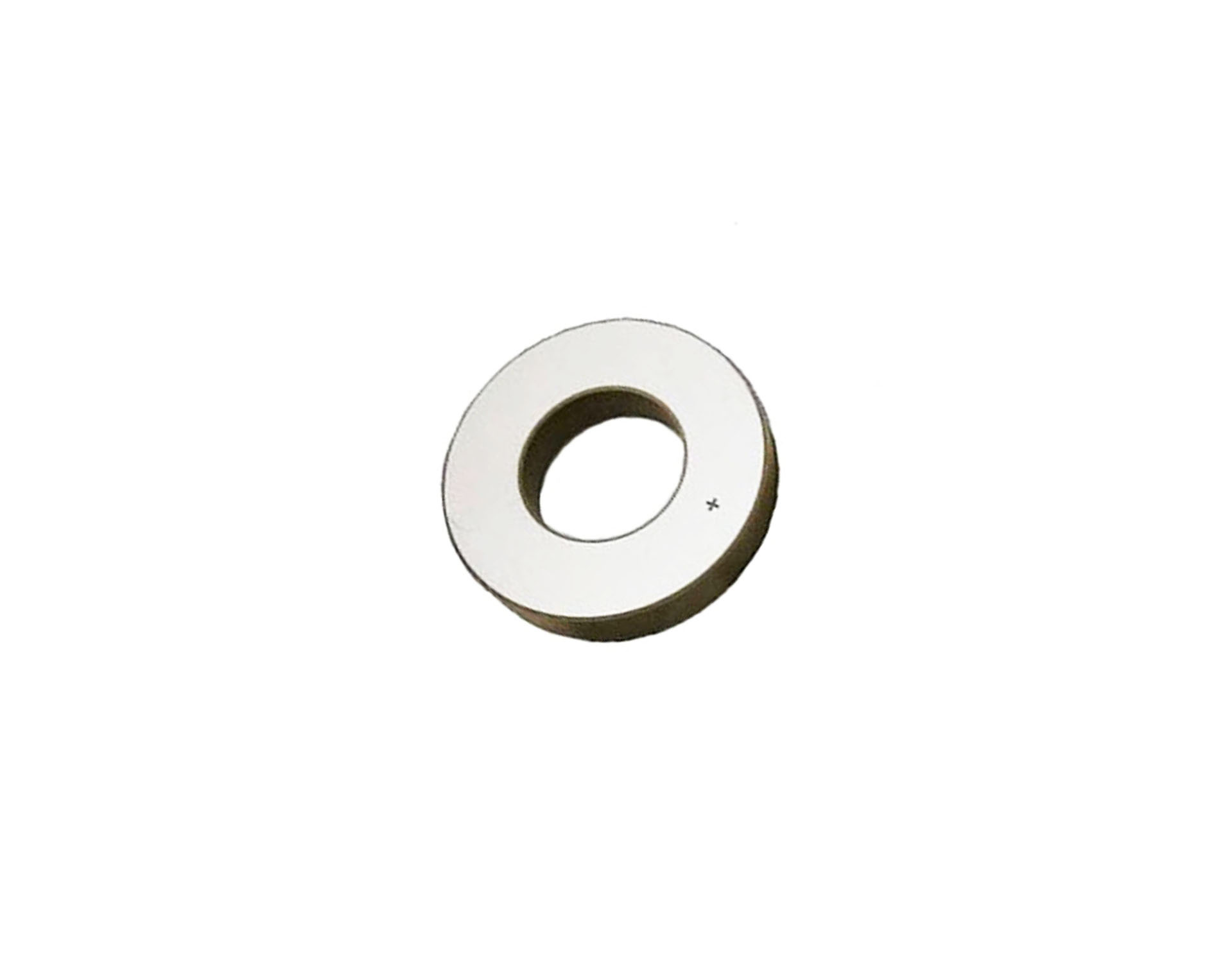

Model: KDCC21x18.2x10-169K Dimension: OD 21mm x ID18.2mm x H 10mm Rated Frequency: 169KHz
Piezo Ultrasonic Welding Transducer
Model:KDU-PHΦ10*Φ5*2 Dimension:Φ10 x 2 (mm) Resonant Frequency:135±5.0 kHz
Piezo Ceramic Welding Transducer

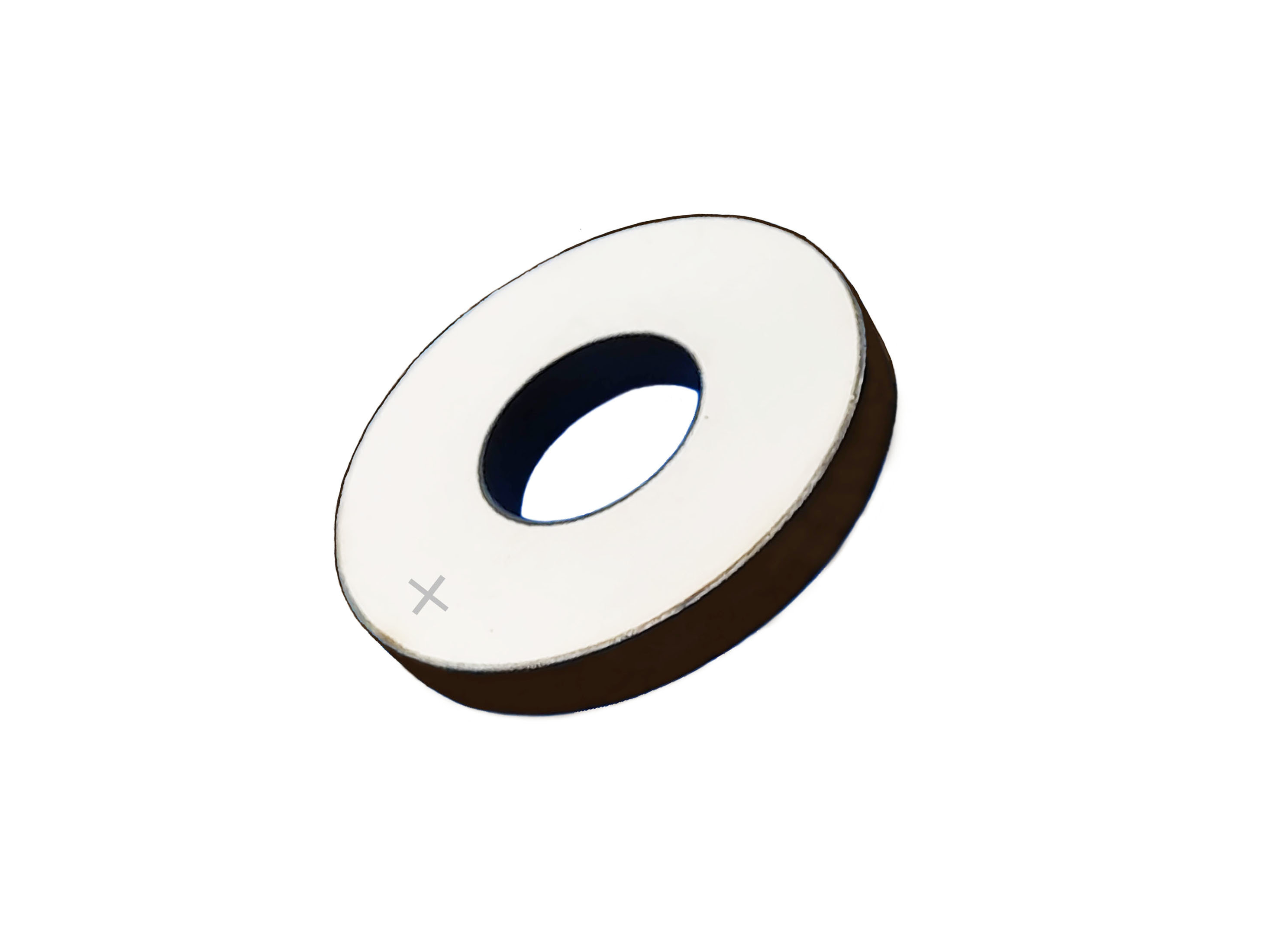

Model:KDU-HTCJ-φ50xφ17-118k Brand:KD Dimension:OD 50mm x ID 17mm x H 6.5mm Resonant Frequency:118±5.0 kHz
Piezo Ultrasonic High Focus Bowl
Model:D20-R26-4M Brand:KD Dimension:PZT 4 HIFU Piezo Ceramic bowl, with silver electrodes on both sides. Resonant Frequency:4.0 ± 0.1 MHz
Piezoelectric Ceramic Disc Transducer
Model:KDU-50-RS50-0.8 Brand:KD Dimension:OD48mm x T2.5mm Resonant Frequency:750±30KHz
Model:KDU-R10x10-20B-1.09 Brand:KD Dimension:Custom dimensions available
