PZT 3.3khz Acoustic Transducer Self Oscillating Piezo Element

PZT 3.3khz Acoustic Transducer Self Oscillating Piezo Element

Model: KD-35S-33S3C-SG Dimension: 35mm*0.5mm Resonant Frequency: 3.3±0.2kHz Complies with RoHS2.0

Service Hotline

+86 20 82979990

market@kailitech.com

Keywords:

Passive Piezo Buzzer、Active Piezo Buzzer、Piezo Element、Piezo Ultrasonic Component、Piezo Speaker

Category:

Piezo Element

Self Oscillating Piezo Element

consulting

■ Product Description

This KD-35S-33S3C-SG is a three-pole (self-driven) piezoelectric buzzer using KNN lead-free ceramic + stainless steel substrate. Its design is unique among 35mm large-size buzzers and is optimized for highly corrosive/high humidity environments.

■ Product Features:

1, Clear, ultra thin and light weight

2, No electromagnetic interference

3, High SPL, low frequency alarm

4, Complies with RoHS2.0 environmental requirements (lead content <1000 ppm)

■ Applications

High reliability self-driven alarm, special sounding element for corrosive environment, harsh industrial environment, outdoor security, etc.

■ Data Sheet

No.	Part Number	KD-35S-33S3C-SG
1	Resonant Frequency	3.3±0.2kHz
2	Resonant lmpedances	200Qmax
3	Static Capacitance CM	35.0±30% at 100Hz;
4	Static Capacitance CF	4.0±30% at 100Hz
5	Dielectric Loss	tgδ≤3.0％
6	Insulation Resistance	100MΩ min. at 10vDC
7	Allowable input Voltage	30Vp-p max.
8	Operating Temperature Range	-20~+70℃
9	Storage Temperature Range	-30~+80℃
10	Plate Diameter	D=35.0±0/-0.1mmm
11	Ceramic Disc Diameter	d=25.0±0.3mm
12	Plate Thickness	t=0.30±0.01mm
13	Total Thickness	T=0.50±00.05mm
14	Plate Material	SUS304
15	RoHS2.0 (Pb<1000 ppm) Environmental Protection Regulation	RoHS2.0 (Pb<1000 ppm)

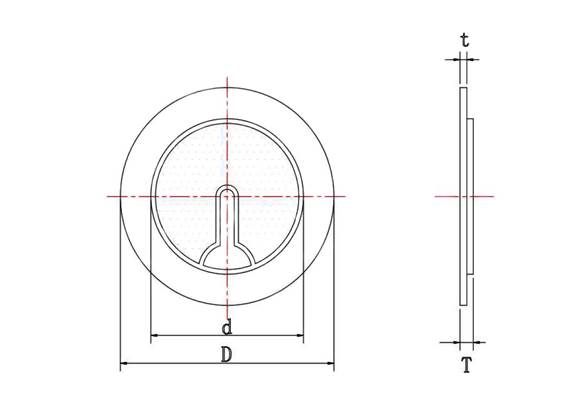

■ Dimension Drawings

Why Choose Our Piezo Buzzer

Piezo buzzers has been more and more popularily used as there is no magnetic field and no coil inside. Typically, piezo buzzers consume less current (less than 30mA), have a broader frequency range (2-6kHz) and wider operating voltage (3- 250V), and generate a higher SPL.

Kailitech piezo buzzers include types of taping, SMD, ultra-low frequency, high SPL, waterproof, high temperature and pressure resistant, with diameter or length and width fm 9.0mm to 100mm, height fm 1.8mm to 65mm, with resonant frequency range fm 200Hz to 15kHz and SPL range fm 65dB to 120dB. Housing material can be ABS, PBT, PPO, LCP, etc.

The main characteristics of Piezo Buzzers are >>

Smaller size, lighter weight, suitable for installation on various circuit boards.

High electric – acoustic power conversion efficiency (above 75%) .

Low power consumption, P≤3V*10mA=0.03W.

High reliability, long durability. The performance and degradation is the log relationship, and the degradation of performance is less than about 5% in 30 years.

No magnetic field, no coil, no electromagnetic interference.
