Multilayer Piezo Speaker
Model: KD-L35.5×15-0.8-1.8-17 Dimension: 35.5mm*15mm*0.8mm SPL: 90dB ±5.0dB@1.8±0.2kHz
Service Hotline
Keywords:
Passive Piezo Buzzer、Active Piezo Buzzer、Piezo Element、Piezo Ultrasonic Component、Piezo Speaker
Category:
■ Product Description
By using the inverse piezoelectric effect of piezoelectric ceramics, a sinusoidal audio amplification signal is input to the "laminated piezo ceramic plate". The "laminated piezo ceramic plate" will bend up and down with the frequency of the amplified audio signal and transmit it to the "vibration substrate" (resin film), which is converted into mechanical energy and drives the air flow to produce sound through plane deformation vibration.
■ Product Features:
①. Ultra slim : thickness ＜0.8mm
②. Low power consumption: 0.3w(1.8KHz/5Vrms);
③. Operating voltage 3.5V～7V (rms)
④. High-quality sound and sound pressure level (SPL)
⑤. No magnetic interference, saving antimagnetic cost
⑥. Easy assembling on Ultrabook/Mobile/Digital Camera/3C products, etc…
■ Applications:
Ultrabook/Mobile/Digital Camera/3C products, etc
■ Data Sheet:
|
No. |
Model No. |
KD-L35.5×15-0.8-1.8-17 |
|
1 |
Resonant Frequency |
1.8±0.2kHz |
|
2 |
Sound Pressure Level |
90dB ±5.0dB |
|
3 |
Resonant Impedance |
100Ω max. |
|
4 |
Rated Frequency Range |
100Hz ～20kHz |
|
5 |
Static Capacitance |
2800.0nF±10% at 100Hz |
|
6 |
Allowable input Voltage |
sine wave 3.5～7.0Vrms (max) |
|
7 |
Operating Temperature Range |
-10～+60℃ |
|
8 |
Storage Temperature Range |
-0～+50℃ |
|
9 |
Lead wire |
UL3302 AWG32# (Φ 0.50±0.10mm) |

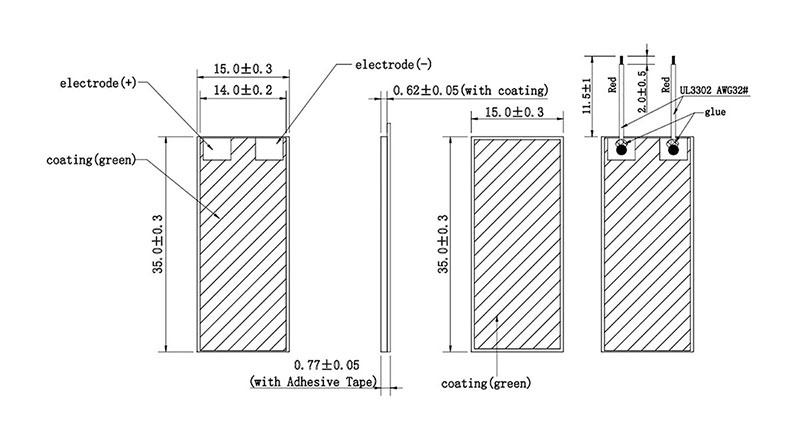

■ Dimension Drawing
Why Choose Our Piezo Buzzer
Piezo buzzers has been more and more popularily used as there is no magnetic field and no coil inside. Typically, piezo buzzers consume less current (less than 30mA), have a broader frequency range (2-6kHz) and wider operating voltage (3- 250V), and generate a higher SPL.
Kailitech piezo buzzers include types of taping, SMD, ultra-low frequency, high SPL, waterproof, high temperature and pressure resistant, with diameter or length and width fm 9.0mm to 100mm, height fm 1.8mm to 65mm, with resonant frequency range fm 200Hz to 15kHz and SPL range fm 65dB to 120dB. Housing material can be ABS, PBT, PPO, LCP, etc.
The main characteristics of Piezo Buzzers are >>
Smaller size, lighter weight, suitable for installation on various circuit boards.
High electric – acoustic power conversion efficiency (above 75%) .
Low power consumption, P≤3V*10mA=0.03W.
High reliability, long durability. The performance and degradation is the log relationship, and the degradation of performance is less than about 5% in 30 years.
No magnetic field, no coil, no electromagnetic interference.
Peizo Buzzers' Markets
Home Appliances
Medical Devices
Safety & Security
Transportation Equipment
Consumer Electronics
IOT
They all chose us
With 30 years of research and development experience, Kailitech is professional in design and develop piezoelectric components according to customer applications. "Customer-oriented, honest and trustworthy, innovative and continuously upgrading" is our aim. Kailitech will consistently provide customers with product value and technical services with rich industry experience and professional knowledge.
FAQ
What are the piezo sound component called?
Piezo Elements, Sounders, Transducers, buzzers, Audio alarms and indicators, and various combinations of these terms.
How does Kailitech sound component part number system works?
Kailitech part number system.
Please give me diagrams of the Feedback Electrode Shape and Recomend Driving Circut of your self drive type piezo transducers.
Recomend Driving Circut for seld drive piezo transducers.
Feedback electrode shape.
What are the mounting options?
Pin-type, Pin-type taping, SMD, Flange Mount & Terminal type.
What tones are available?
Continuous, Fast Pulse, Ultra Loud Siren, Ultra Loud Warble Series, and Continuous/Pulse Dual Tone.
How are they constructed?
Exploded piezo buzzer Diagram.
What are the mounting options?。
Pin-type, SMD, Flange Mount, Terminal type and Panel Screw Terminals.
